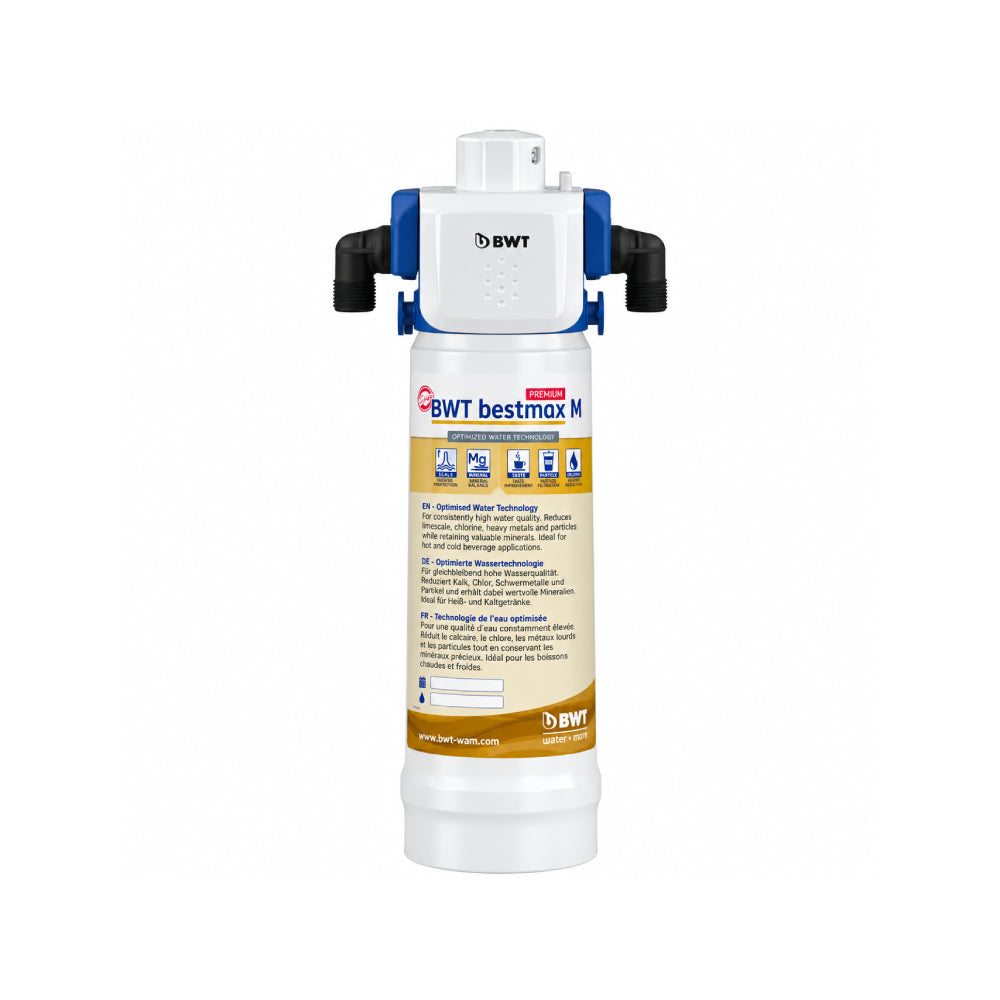

BWT Bestmax Premium Water Filter Cartridge

BWT Bestmax PREMIUM Water Filter Cartridge:

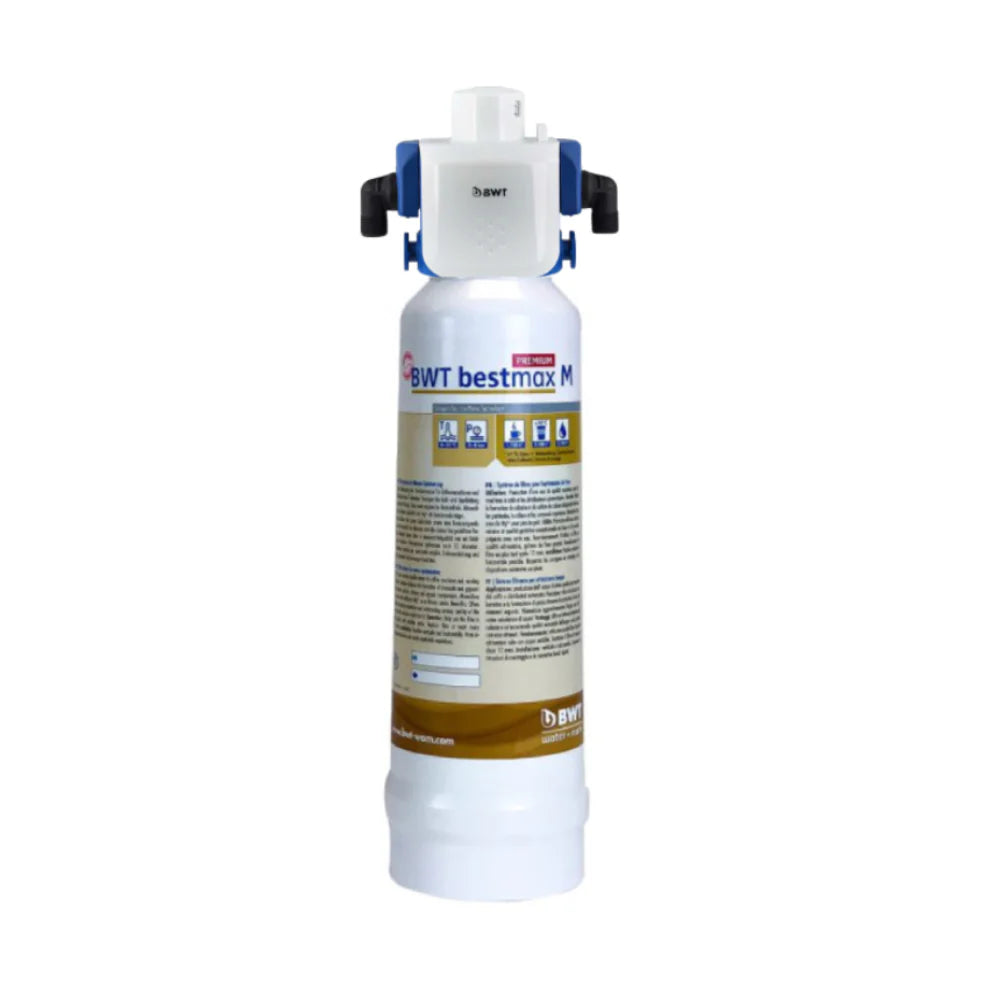

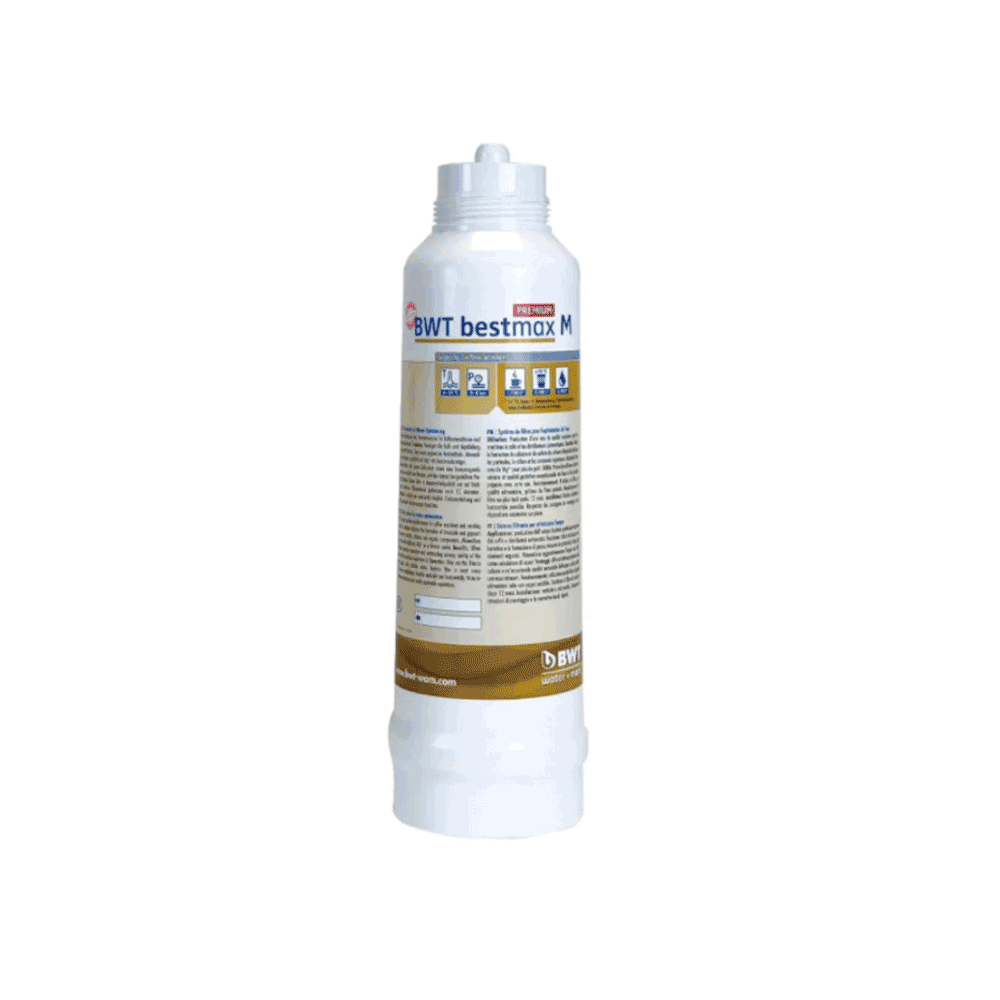

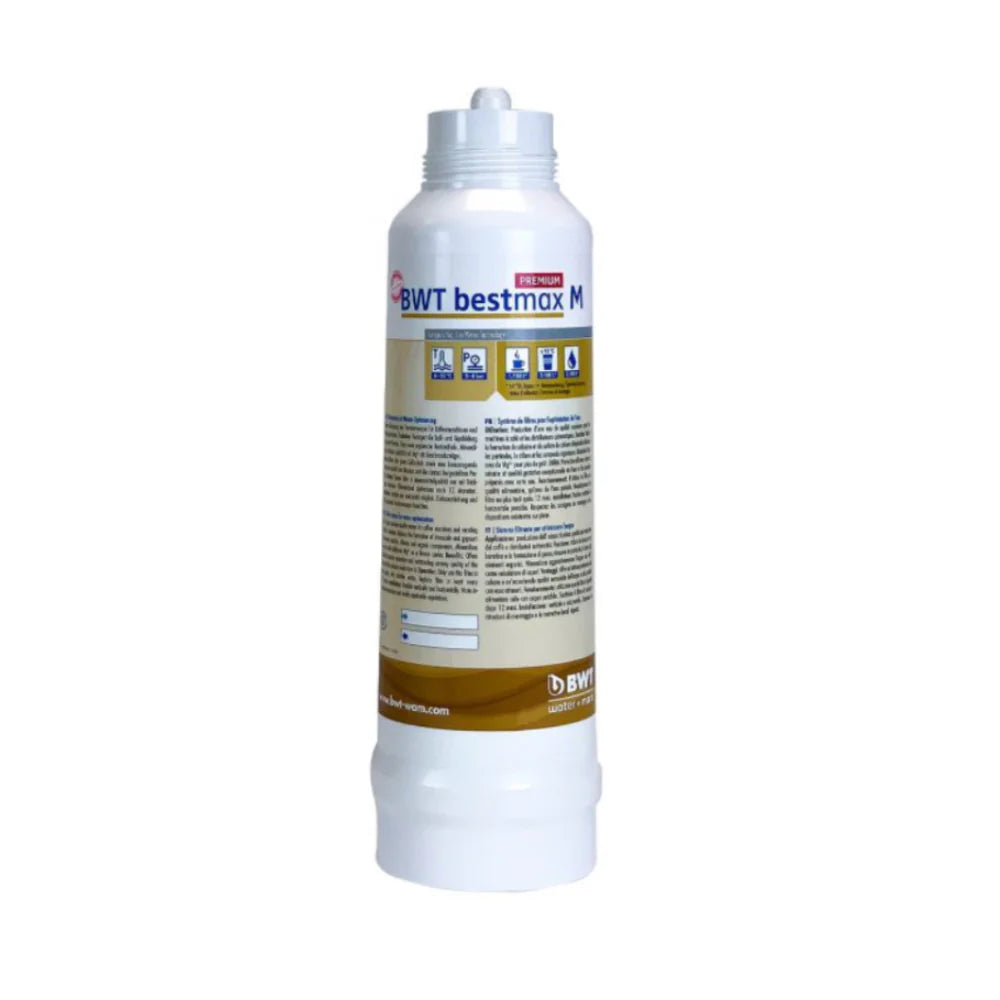

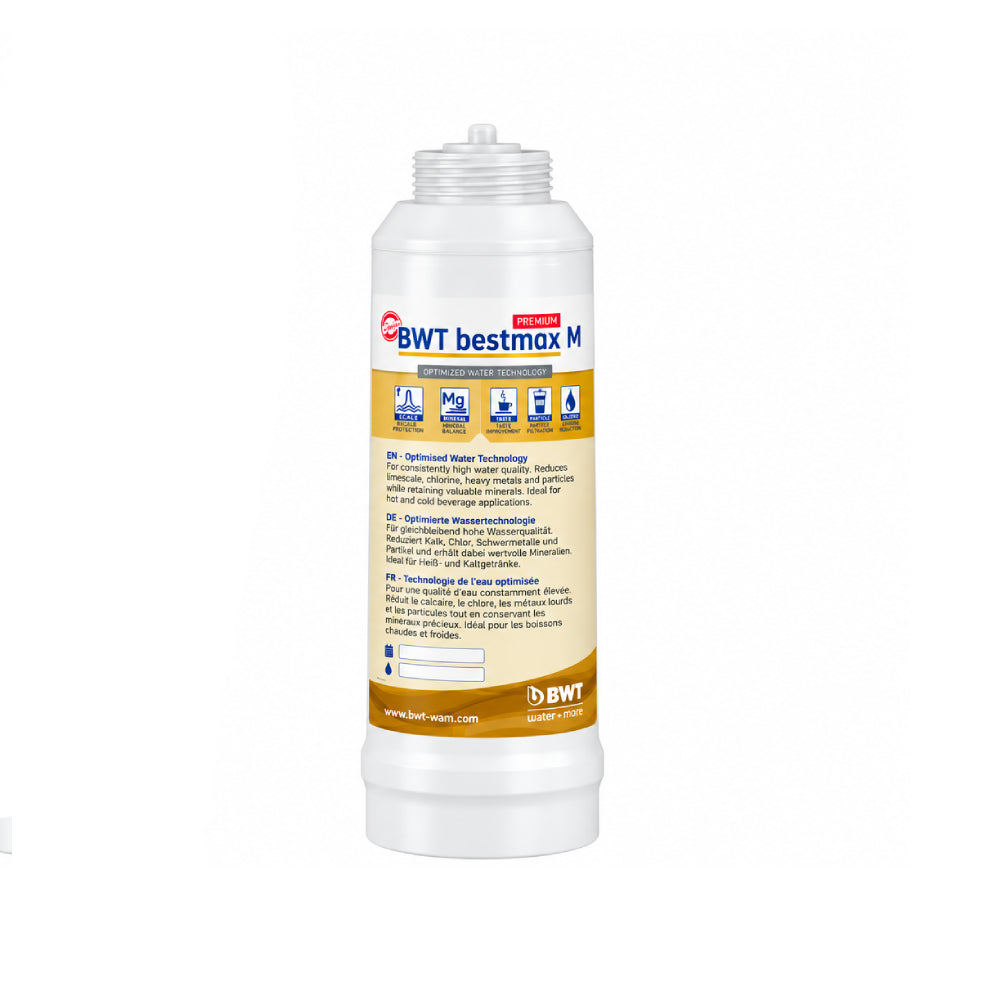

PREMIUM Type M

·   Connection Thread (In/Out): 3/8″

·   Inlet Pressure (min–max): 2–8 bar

·   Water Temperature (min–max): 4–30°C

·   Ambient Temperature (min–max): 4–40°C

·   Total Height without Bracket (A): 475 mm

·   Total Height with Bracket (B): 500 mm

·   Connection Height (C): 421 mm

·   Distance from Floor (D): 65 mm

·   Installed Length (E): 125 mm

·   Filter Cartridge Diameter (F): 130 mm

·   Weight (approx.): 4.2 kg

·   Order No. (Filter Cartridge): FS24P00A00

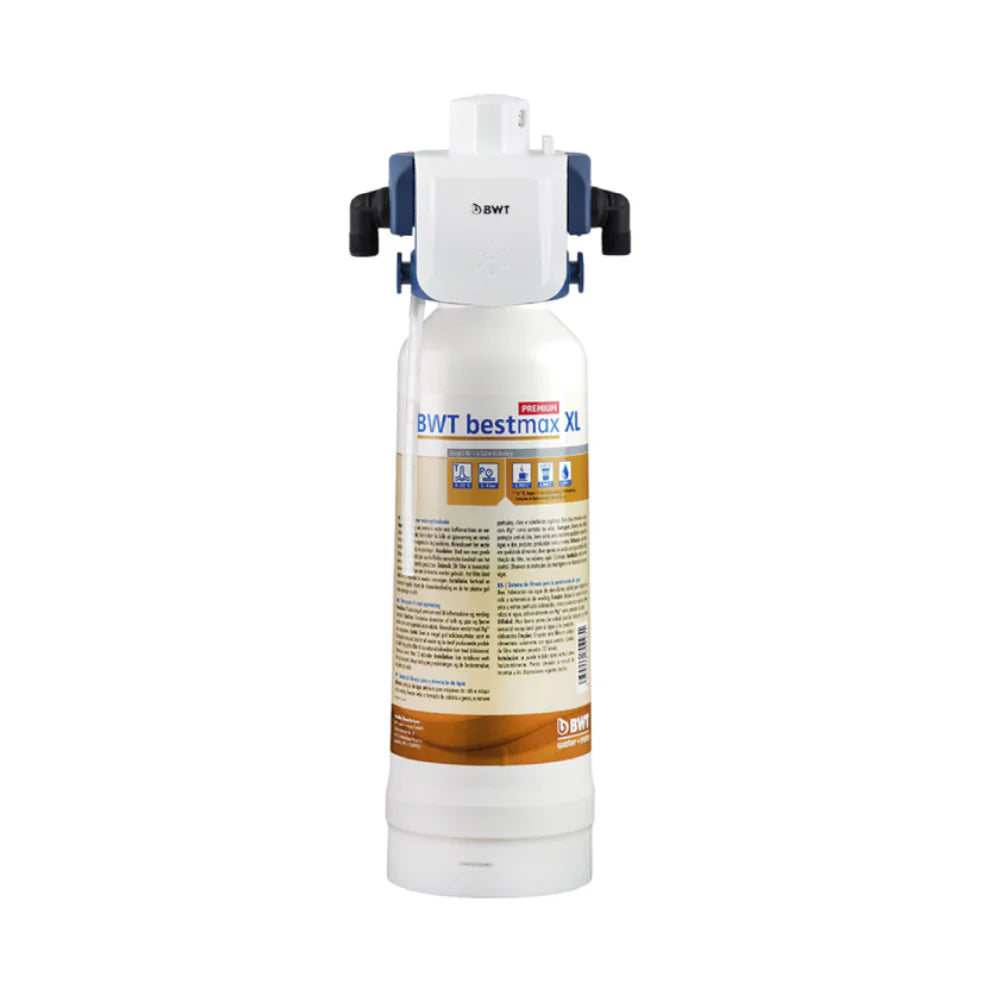

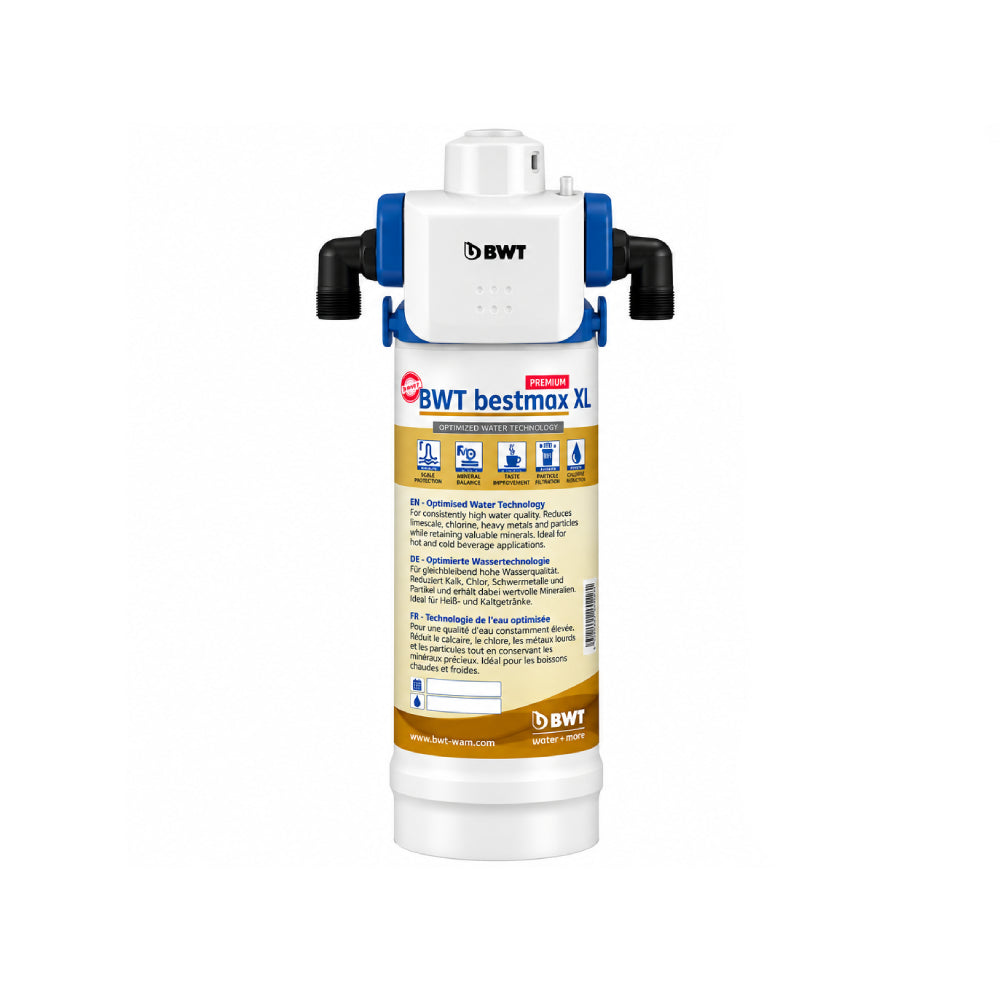

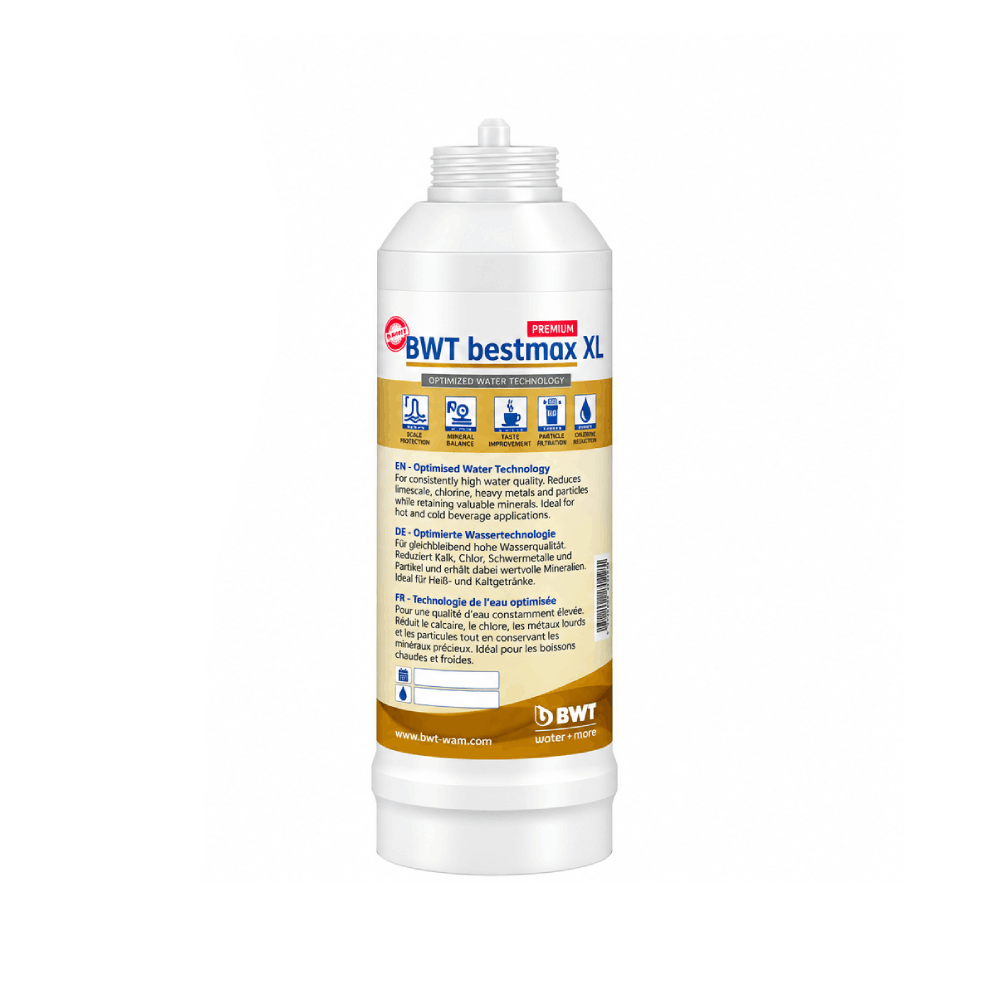

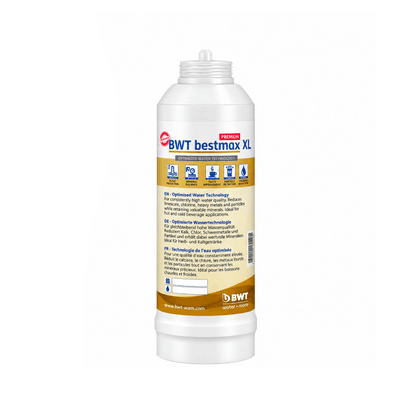

PREMIUM Type XL

·   Connection Thread (In/Out): 3/8″

·   Inlet Pressure (min–max): 2–8 bar

·   Water Temperature (min–max): 4–30°C

·   Ambient Temperature (min–max): 4–40°C

·   Total Height without Bracket (A): 502 mm

·   Total Height with Bracket (B): 527 mm

·   Connection Height (C): 448 mm

·   Distance from Floor (D): 65 mm

·   Installed Length (E): 125 mm

·   Filter Cartridge Diameter (F): 147 mm

·   Weight (approx.): 4.0 kg

·   Order No. (Filter Cartridge): FS28P00A00

Technical Advantages

·   5-stage filtration system

·   Reliable limescale protection for equipment

·   Optimized mineralization with increased magnesium content

·   Activated carbon fleece for consistently clear water

·   Effective filtration of bypass water

·   Easy and convenient filter replacement

·   Suitable for both horizontal and vertical installation
