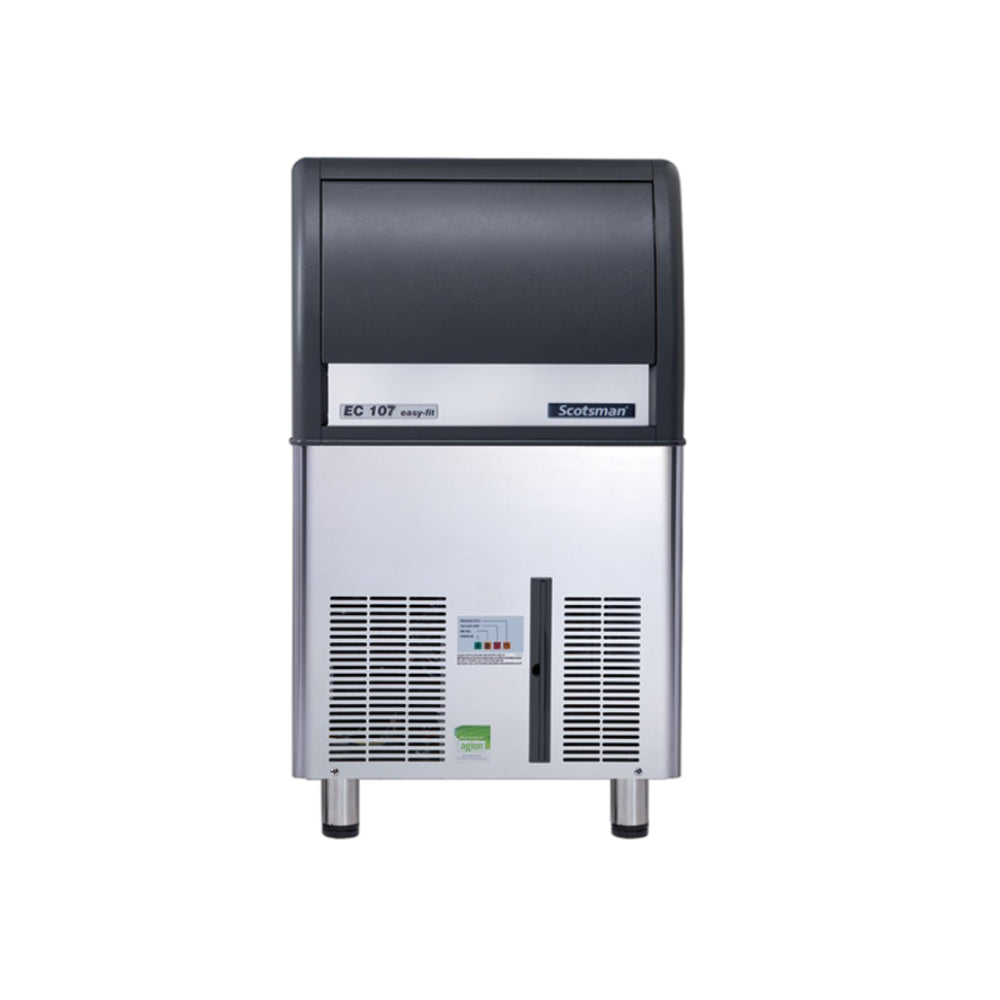

Scotsman ECM107 Self Contained Ice Machine 50kg

Technical Specifications

Cooling System

·   Condensing System: Air-Cooled

·   Refrigerant Gas: R290

Electrical Specifications

·   Voltage / Frequency / Phase: 230–240 V / 50 Hz / 1 Phase

·   Electrical Voltage Tolerance: -10% / +10%

Operating Conditions

Air Temperature

·   Minimum: 10°C

·   Maximum: 43°C

Water Temperature

·   Minimum: 5°C

·   Maximum: 38°C

Water Pressure

·   Minimum: 1 bar (14 psi)

·   Maximum: 5 bar (70 psi)

Production & Capacity

·   Maximum Daily Production: 53 kg (based on the standard model)

·   Maximum Bin Capacity: 23 kg

Dimensions

·   Without Legs (mm): W 531 × D 600 × H 840

·   With Legs (mm): W 531 × D 600 × H 930
