Profitec E61 Flow Profile Valve

Name: Profitec E61 Flow Profile Valve
Brand: Profitec
SKU: P1065
Availability: InStock

SKU: REFERENCE: P1065

866 (VAT Incl.)

866 (VAT Incl.) ~~(VAT Incl.)~~

Split your payment with Tabby or Tamara

Pattern OR Type: Standard Standard

Product variants

Last 4 items left!

Shipping policy

Deliver to: Note: Timing may be affected if you miss a message from the courier. Add at least one item to change location.

INSTRUCTIONS (PDF)

Fast Shipping

Trusted Brand

WhatsApp Support

Secure Pay

Question about our gear?

Our specialists know every detail. Get expert advice in seconds.

Chat: +971 52 438 5156 Call: +971 4 232 5554

Instant Gear Support

AI-assisted help for quick answers

Human Team Available

For complex product questions

Available

8:30 AM - 6:00 PM

Promos & Offers Available

View full details

Product Overview

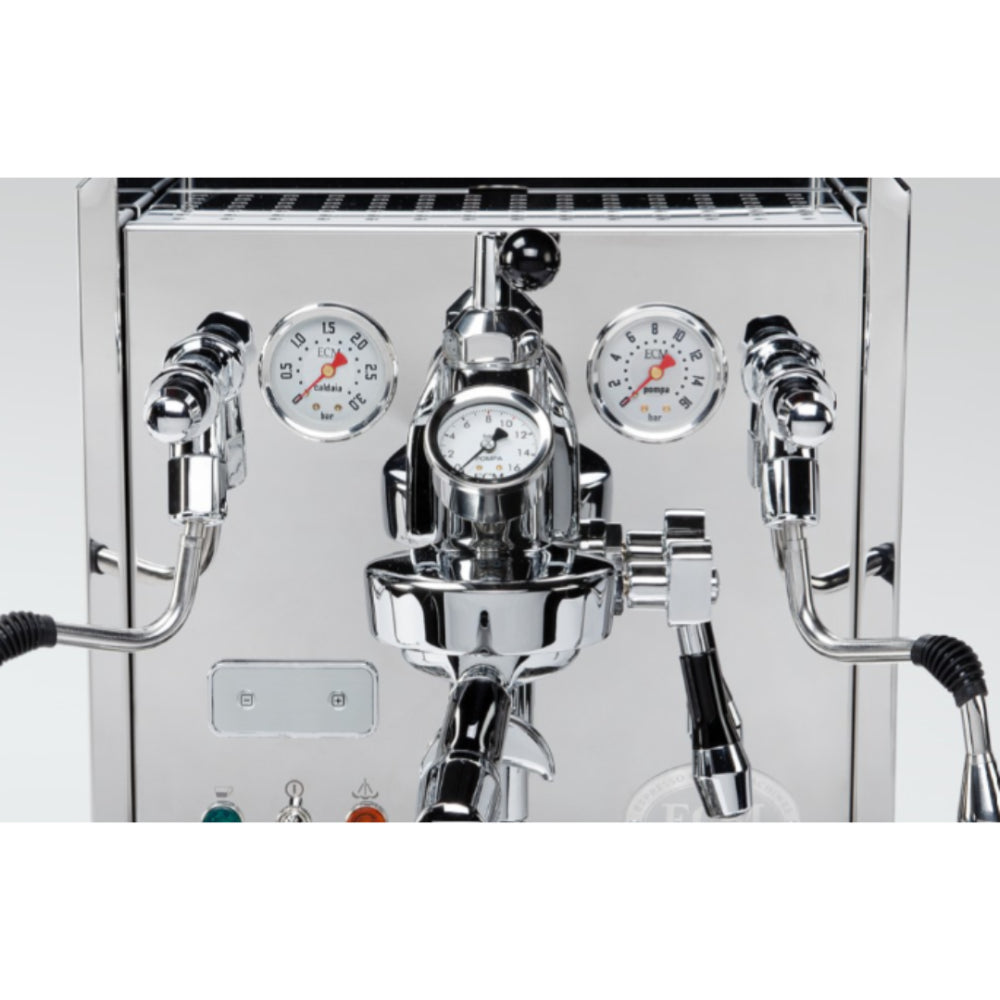

Professional upgrade kit to control manually the flow rate in the Profitec brew group. Adjustment of the flow rate at which the water in the brew group hits the coffee. This extension gives you the possibility to vary another factor of the espresso extraction in addition to the grind and weight. With a low flow at the beginning of the brewing process, the risk of uneven extraction (channell. . .

read less

Specifications & Details

Unscrew the mushroom using a 36 mm open-end wrench.
Caution: Avoid scratching the surface.

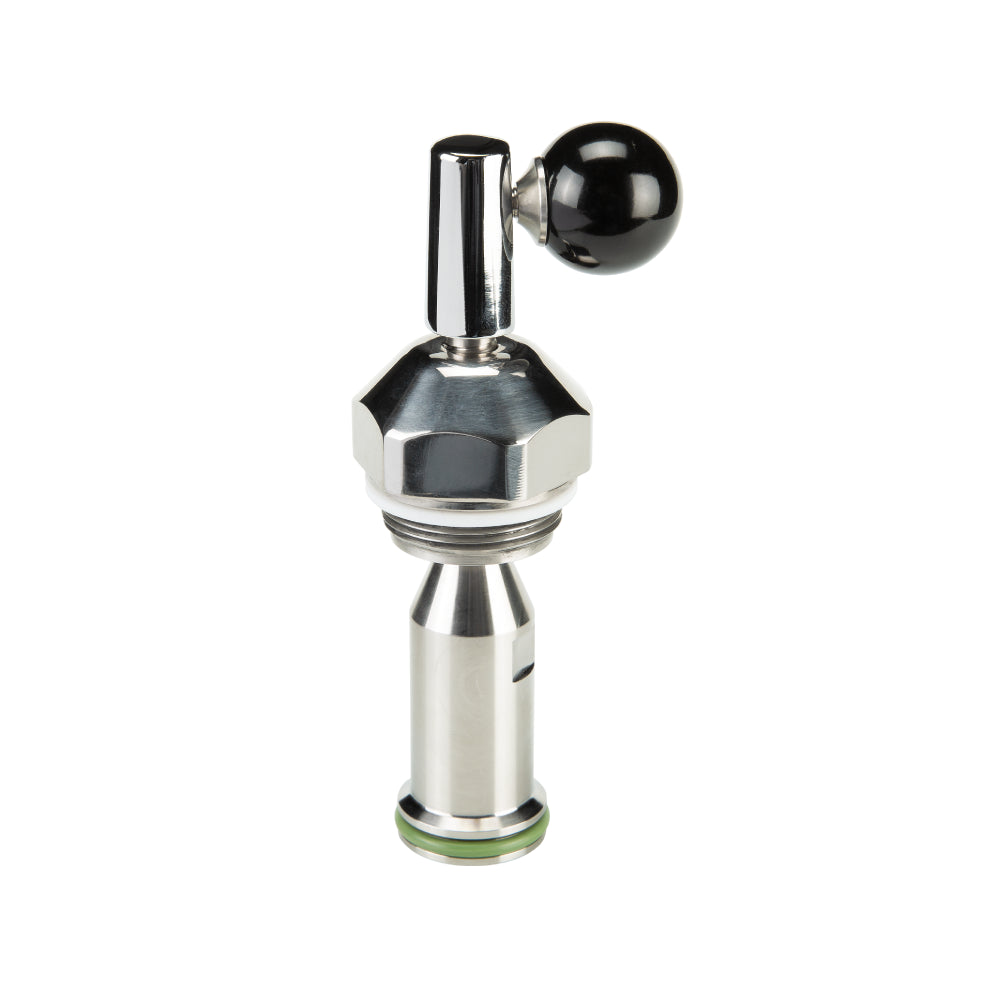

Install the new profiling valve (P1025) in place of the mushroom.
Unscrew the existing screw using a 5 mm hex key.

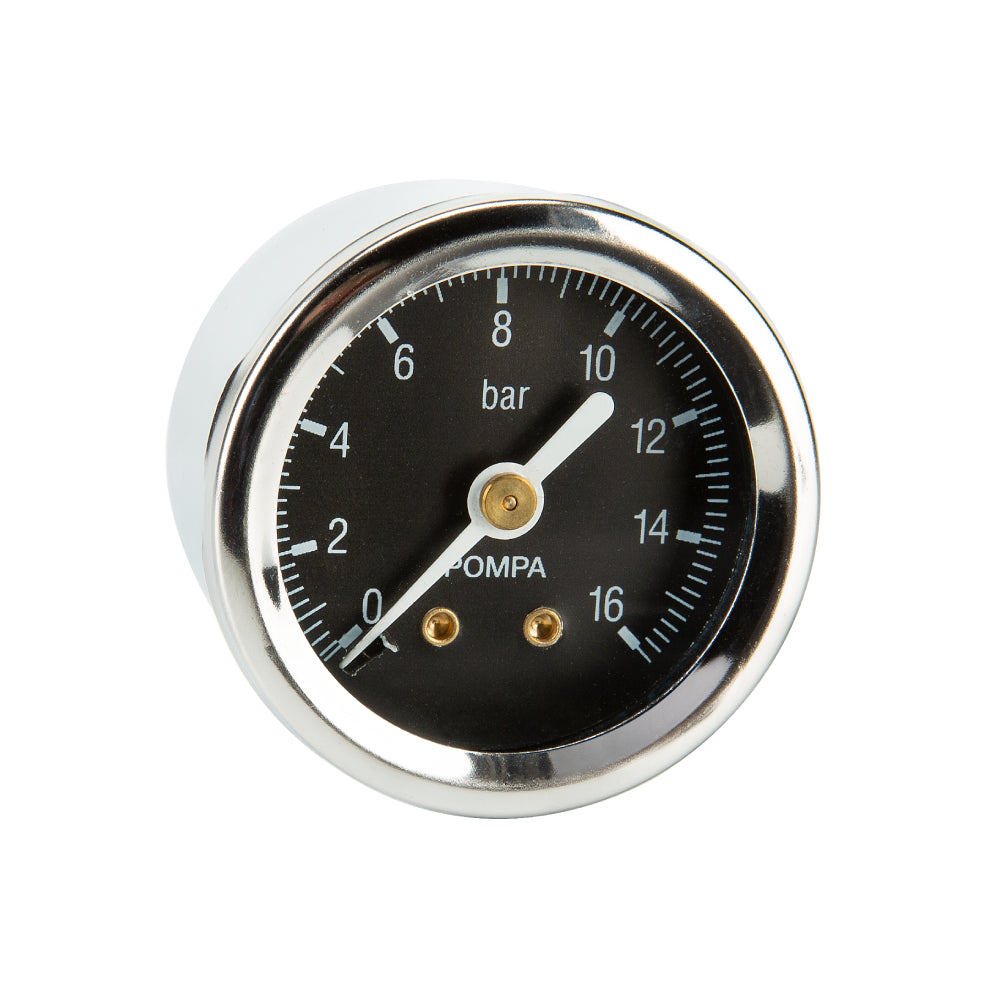

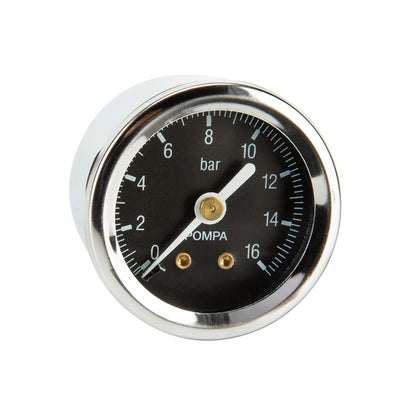

Mount the pressure gauge (P1026) in the same position.
Reuse the Teflon seal from the original screw.
It is recommended to use FDA-approved thread sealant.
Caution: Do not overtighten the gauge to avoid thread damage.
Close the valve by rotating the bolt fully clockwise.
Position the bushing in the desired direction for the closed position on the spindle.
Screw in the ball grip and tighten securely.
Unscrew the pre-brew cylinder at the lower brew group using a 36 mm open-end wrench.
Replace the spring with the supplied P1029 spring.
Insert the valve spindle into the pre-brew cylinder.
Reassemble it back onto the lower brew group.
Ensure the machine is unplugged from the power supply before installation.
