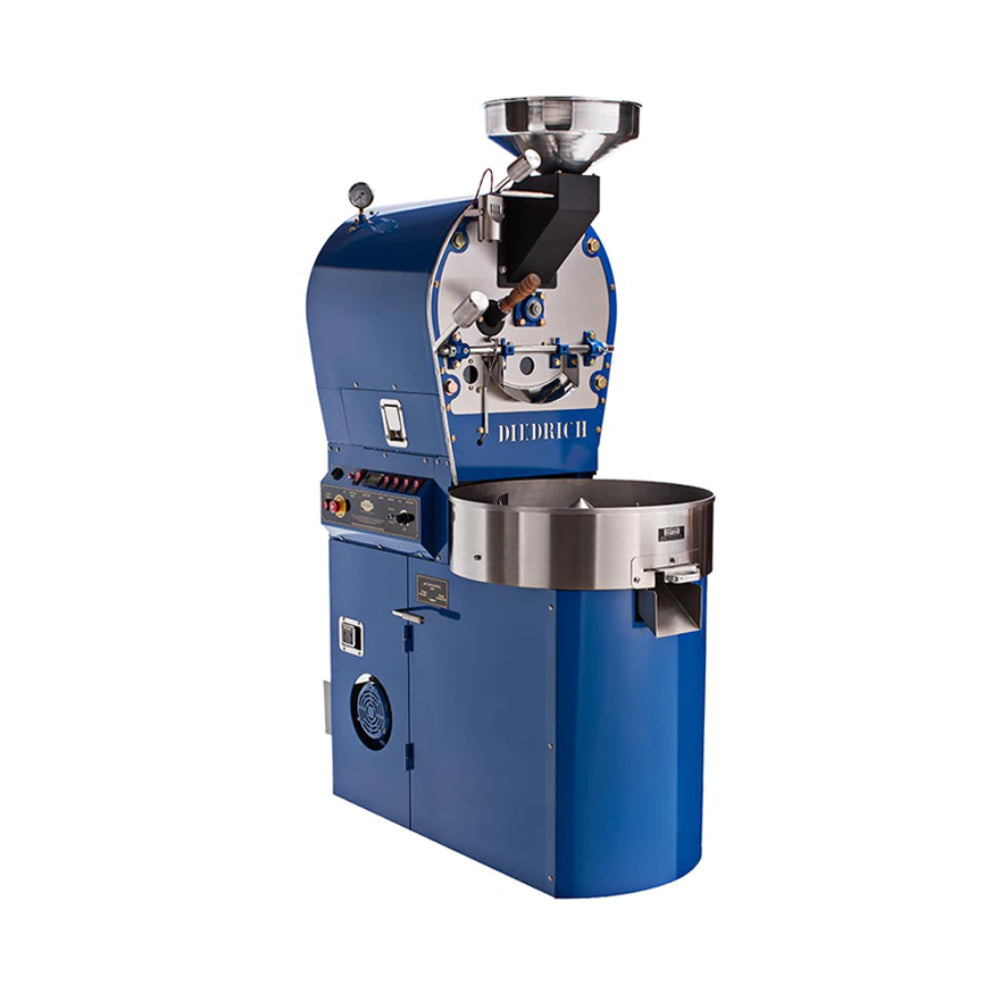

Diedrich Infra Red-5 5kg Coffee Roaster

Name: Diedrich Infra Red-5 5kg Coffee Roaster
Brand: Diedrich
SKU: DIEDRICH
Availability: InStock

SKU: REFERENCE: DIEDRICH

215,250 (VAT Incl.)

215,250 (VAT Incl.) ~~(VAT Incl.)~~

Split your payment with Tabby or Tamara

Pattern OR Type: Standard Standard

Product variants

Shipping policy

Fast Shipping

Trusted Brand

WhatsApp Support

Secure Pay

Question about our gear?

Our specialists know every detail. Get expert advice in seconds.

Chat: +971 52 438 5156 Call: +971 4 232 5554

Instant Gear Support

AI-assisted help for quick answers

Human Team Available

For complex product questions

Available

8:30 AM - 6:00 PM

Promos & Offers Available

View full details

Product Overview

The Diedrich Roaster is designed for consistency and repeatability, ensuring a perfect roast batch after batch. The batch size for the IR-5 is approximately 11 lb (5 kg) of green coffee, hourly capacity is approximately 18 kg / 40 lb per hour of green beans. In addition to full batch capacity, our roasters are also designed to roast half batches. Features · Connect a tablet or computer dir. . .

read less

Specifications & Details

Technical Specifications

· Batch Capacity (Min–Max): 250 g – 5 kg

· Daily Roast Output: 87.5 kg

· Voltage: 110 / 230 V

· Amperage (FLA): 13 / 7 A

· Maximum Heat Input: 50,000 BTU/hr (10.84 kW)

· Average Heat Input per Roast: 20,880 BTU/hr (6.1 kW)

· Gas Type: LPG / Natural Gas

· Roast Airflow: 298–373 scfm / 506–632 scmh

· Roaster Weight (Empty): 400 kg

Dimensions

· Machine Dimensions (cm): L 127 × W 66 × H 181

· Exhaust Duct Diameter: 8 in / 20.32 cm

About the Brand

The history of the company started with Charlotte Diedrich inheriting a coffee plantation in Costa Rica in 1916. Diedrich Coffee, a neighborhood coffeehouse, was founded by Martin Diedrich in 1983. He took over the retail, roasting and importing facets of the family business. Diedrich bring versatility and precision for perfectly repeatable results for cacao and other natural products. read less

Is This For you

Perfect For

Specialty coffee roasters
Small-batch production
Sample-to-production roasting
Roastery cafés
Roast profiling control
Training and education labs
Premium commercial roasting

Not Ideal For

Home kitchen use
Very high-volume roasting
Instant plug-and-play setup
Low-budget beginners
Spaces without ventilation
Users avoiding gas roasters

Features

The Diedrich Infra Red-5 5kg Coffee Roaster is a professional production roaster designed for cafés, roasteries, and specialty coffee businesses that need consistent, repeatable roasting in small-to-medium production volumes. It offers up to 5 kg batch capacity, approximately 18 kg hourly green-bean capacity, infrared gas burner technology, roast profiling integration with Cropster and Artisan, and options for manual, data-logging, or fully automated configurations

5kg Batch Capacity

Roasts from 250 g up to 5 kg of green coffee, making it flexible for sample-style batches, half batches, and full production roasting.
Consistent Repeatable Roasting

Designed to support reliable roast results batch after batch, helping cafés and roasteries maintain flavour consistency.
Infrared Gas Burner Technology

Uses infrared burners to provide conductive, convective, and radiant heat for better roast control.
Manual, Data-Logging or Automated Options

Available in different control configurations to suit hands-on roasting or more automated production workflows.

How it compares

Compare with other similar products

Feature

Product Type

Main Use

Batch Capacity

Hourly Output / Efficiency

Power / Installation

Best Fit

Diedrich Infra Red-5 5kg Coffee Roaster

Production coffee roaster

Small-batch commercial coffee production

5 kg / 11 lb green coffee

Approx. 18 kg / 40 lb per hour green coffee

Commercial production roaster setup

Roasteries, cafés, and production teams needing 5 kg batches

Roest P3000 3kg Automated Production Roaster

Automated production coffee roaster

Automated production roasting

3 kg production roaster

Production roasting; 3 kg class

Production roaster setup

Roasteries wanting automation in a smaller 3 kg production format

Technical Specifications

Complete technical details and specifications

Roasting Capacity & Output

Batch Capacity 250 g – 5 kg

Hourly Capacity Approx. 18 kg / 40 lb per hour

Daily Roast Output 87.5 kg

Half-Batch Roasting Yes

Power & Gas

Voltage 110 / 230 V

Amperage 13 / 7 A

Maximum Heat Input 50,000 BTU/hr / 10.84 kW

Average Heat Input per Roast 20,880 BTU/hr / 6.1 kW

Gas Type LPG / Natural Gas

Dimensions & Airflow

Machine Dimensions L 127 × W 66 × H 181 cm

Roaster Weight Empty 400 kg

Exhaust Duct Diameter 8 in / 20.32 cm

Roast Airflow 298–373 scfm / 506–632 scmh

Features

Burner System Infrared gas burners

Heat Control Conductive, convective, and radiant heat

Connectivity Connect tablet or computer directly

Configurations Manual, data-logging, or fully automated
