BWT Bestprotect Water Filter Cartridge

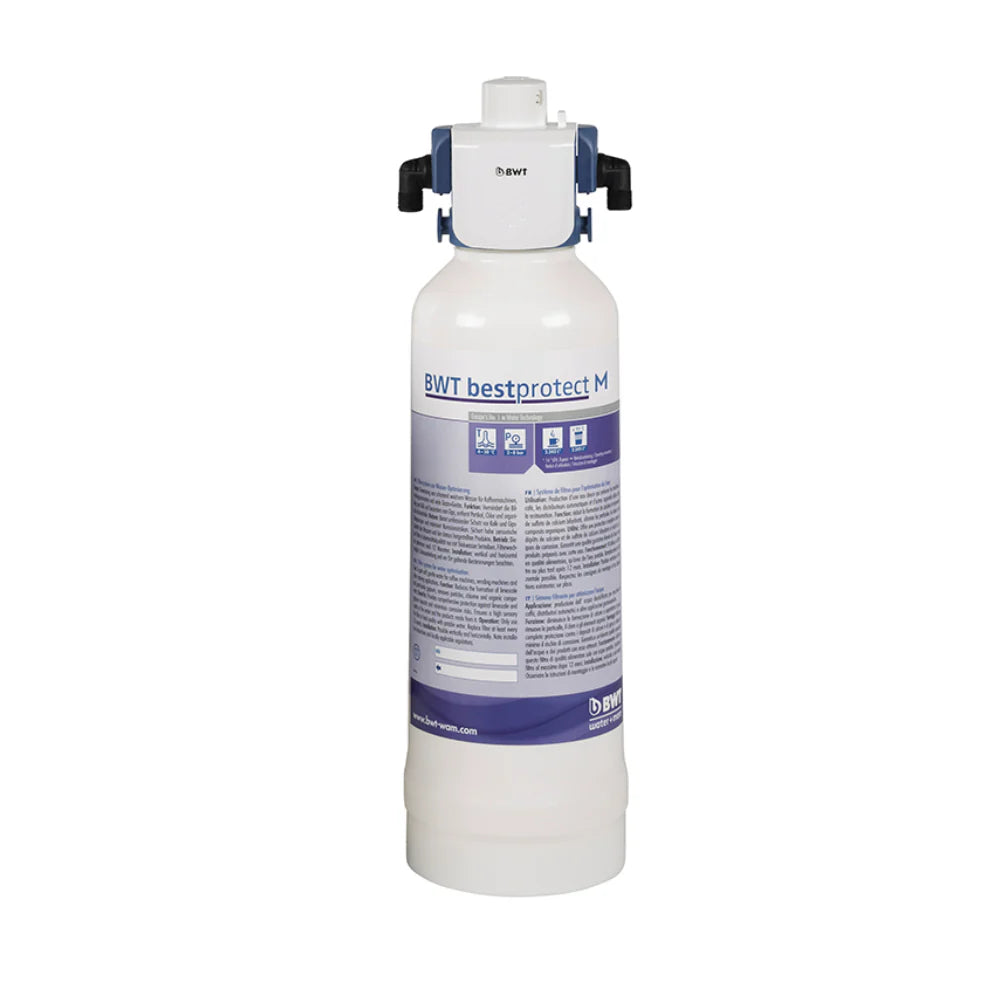

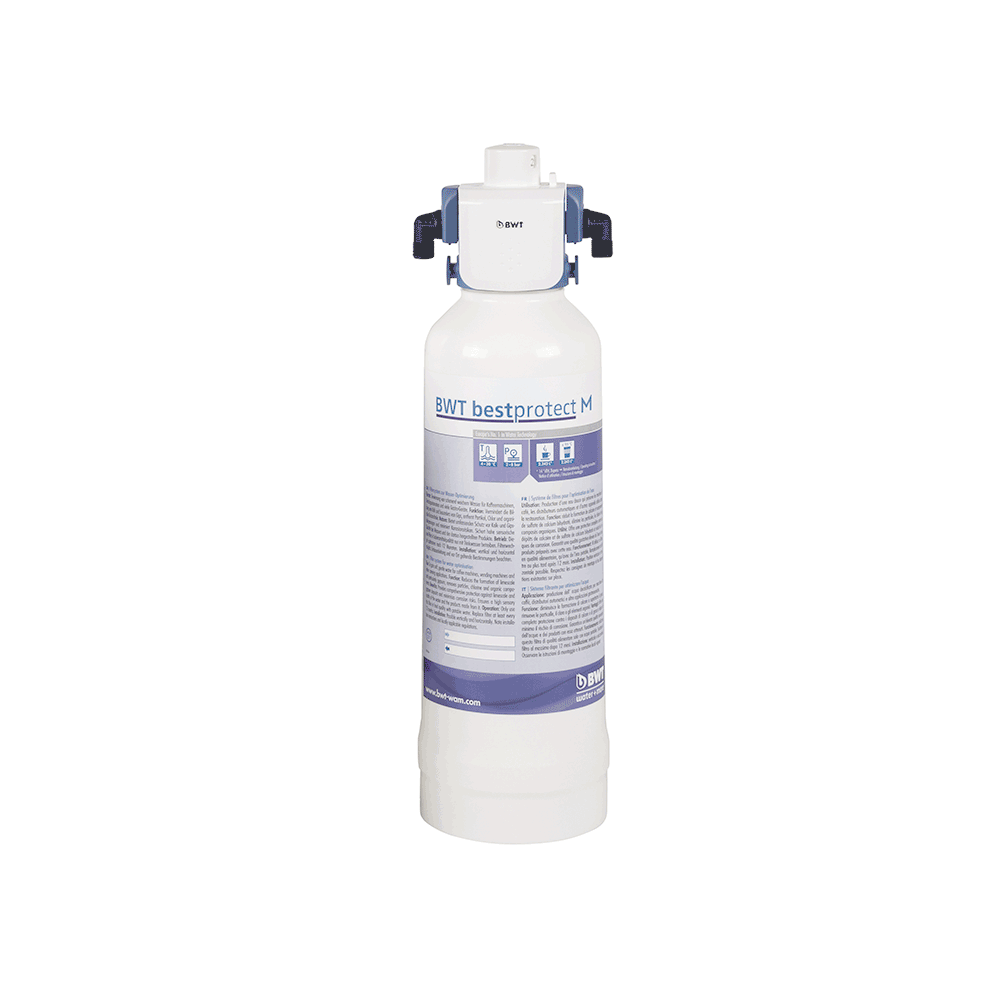

M FILTER
• Connection thread (in/out) : 3/8"
• Intake pressure min–max in bar : 2 – 8
• Water temperature min – max in °C : 4 – 30
• Ambient temperature min – max in °C : 4 – 40
• Total height without bracket (A) in mm : 475
• Total height with bracket (B) in mm : 500
• Connection height (C) in mm : 425
• Distance from floor (D) in mm : 65
• Installed length (E) in mm : 125
• Filter cartridges Ø (F) in mm : 130
• Weight in kg, approx. : 4.2
• Order no. Filter cartridge : 125501405

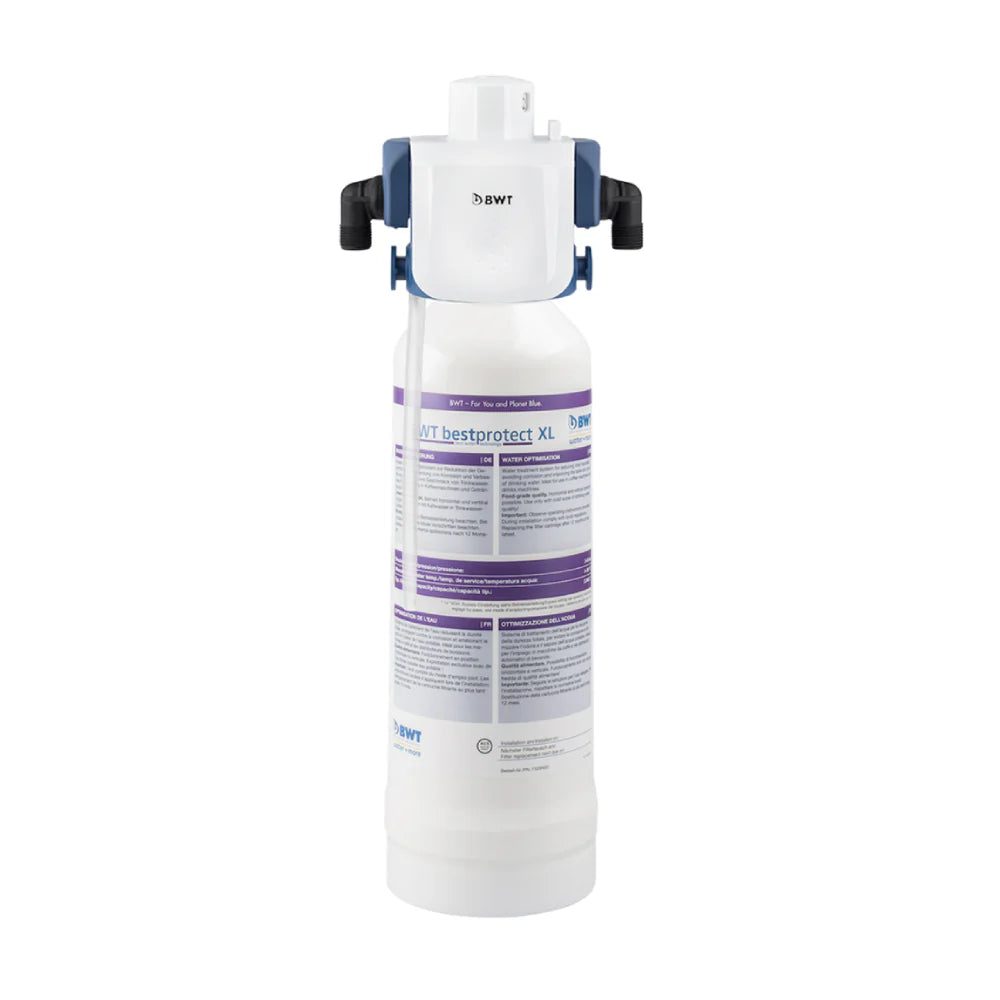

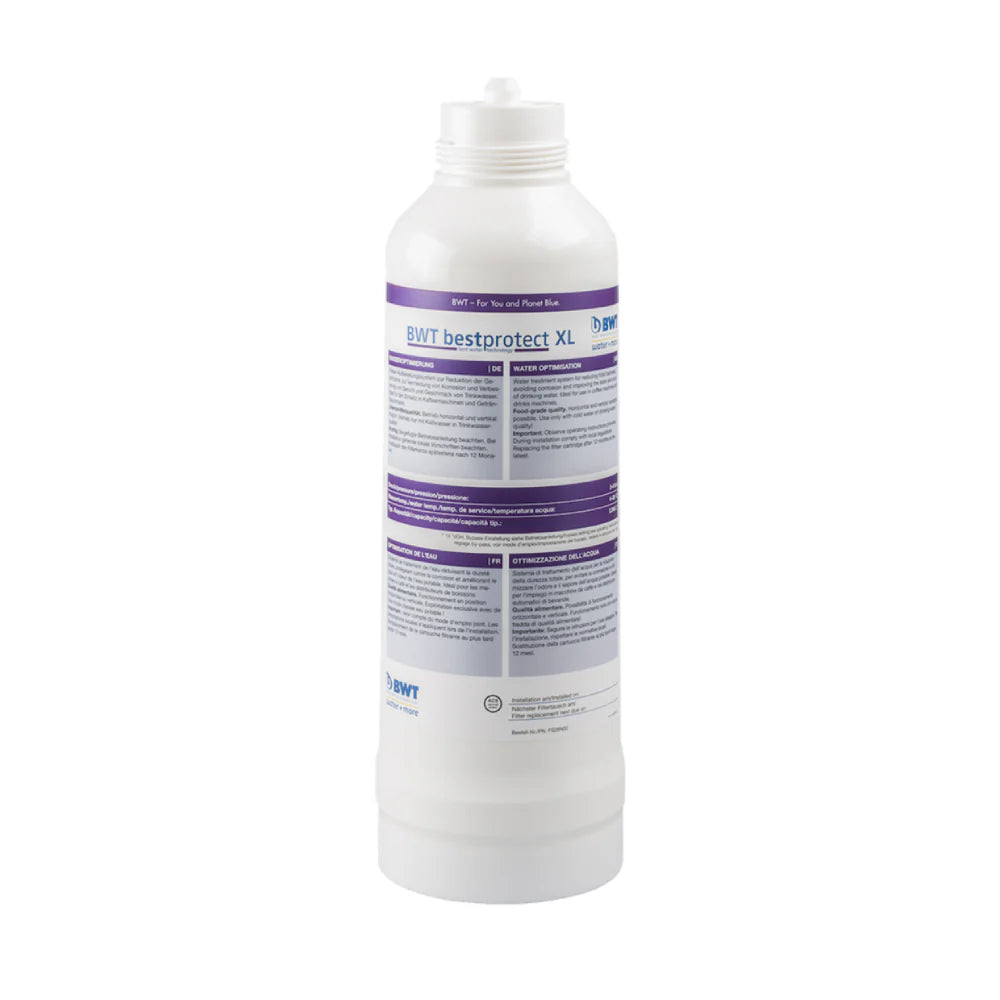

XL FILTER
• Connection thread (in/out) : 3/8"
• Intake pressure min–max in bar : 2 – 8
• Water temperature min – max in °C : 4 – 30
• Ambient temperature min – max in °C : 4 – 40
• Total height without bracket (A) in mm : 500
• Total height with bracket (B) in mm : 530
• Connection height (C) in mm : 450
• Distance from floor (D) in mm : 65
• Installed length (E) in mm : 125
• Filter cartridges Ø (F) in mm : 145
• Weight in kg, approx. : 4.0
• Order no. Installation set : FS28N01A00
• Order no. Filter cartridge : FS28N00A00

TECHNICAL ADVANTAGES
• 5-stage filtration
• Reliable protection against limescale and gypsum for machines
• High pH value to minimise the risk of corrosion
• Activated charcoal fleece for consistently crystal-clear water
• Ease of handling when replacing the filter
