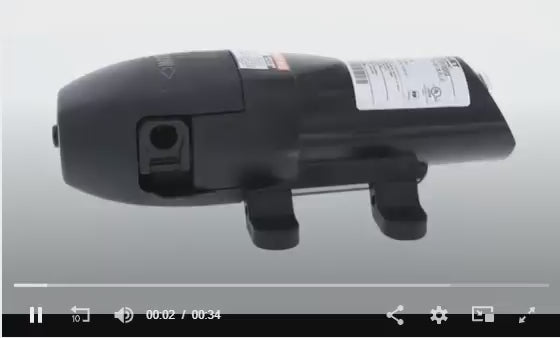

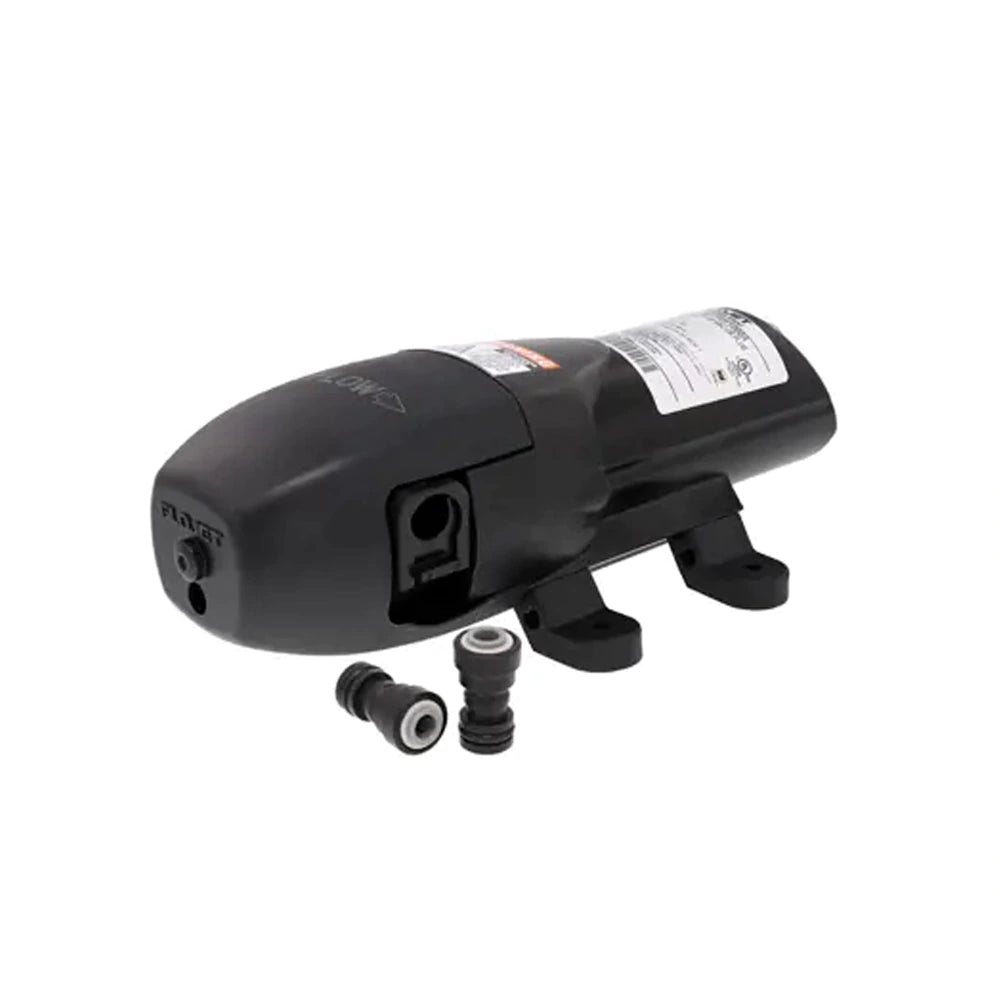

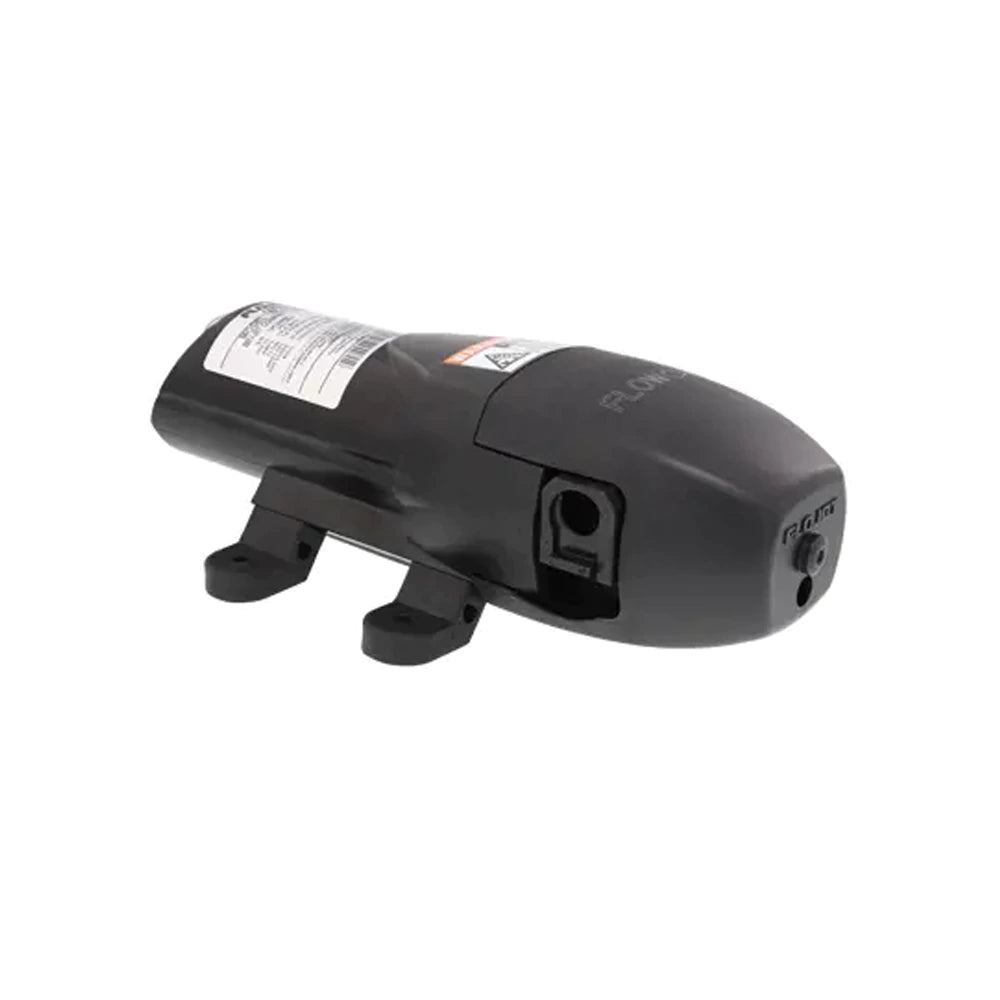

Xylem Flojet BevJet Compact Series Beverage Dispense System

Specifications

·   Ports: Pump, Fittings, Power Adaptor

·   Approvals: 230 VAC

·   Pump Design: Positive Displacement Double Diaphragm

·   Max Amps: 3.0 A at 25 PSI / 1.7 bar

Wetted Pump Parts

·   Housing: Polypropylene

·   Elastomers: EPDM and Santoprene®

·   Check Valve Spring: Stainless Steel

·   Inlet Port: 1/4″ JG, standard

·   Outlet Port: 1/4″ JG, standard

Performance

·   Flow Rate: 1.0 GPM / 3.8 LPM max.

·   Pressure: 40 PSI / 2.8 bar max.

·   Liquid Temperature: min. 34 °F / 1.1 °C, max. 120 °F / 49 °C

·   Viscosity Handling: Up to 240 centipoise

·   Net Weight: 1 lb / 0.5 kg

·   Dimensions: H 2.67″ × W 4.06″ × L 7.76″ / H 67.9 × W 103.1 × L 197.2 mm

Maximum Run Time

·   Built-In Electronics: Turns the pump off after 1 min of dry running or 5 min of

continuous operation.
