BWT Bestaqua ROC

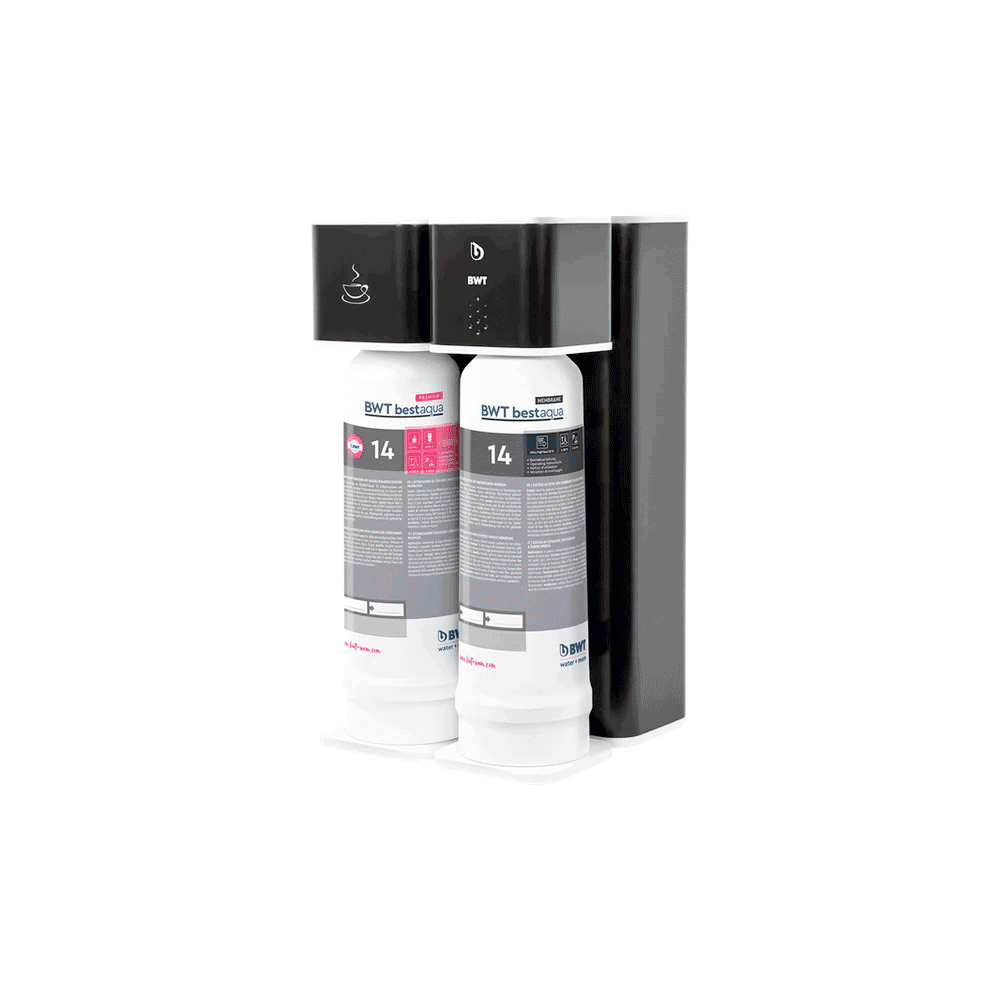

14 ROC
Key data
• Permeate performance1: 2 L/min = 120 L/h
• Salt retention rate: (>) 97 %
• Permeate yield 1,2,3 (WCF): approx. 50 %

Operating conditions
• Min. feed water flow rate : 4.2 L/min = 250 L/h
• Concentrate flow rate approx.: 2.0 L/min = 120 L/h
• Feed water pressure: 0.15–0.4 MPa = 1.5–4 bar
• Feed water temperature: 5–30 °C
• Ambient temperature: 5–40 °C

Power
• Power supply: 230 V/50 Hz, ≥ 6 A protection
• Protection class: IP 54
• Equipment fuse: 1,25 A, time-lag
• Power consumption    : 200 W, Standby (<) 3W
• Equipment connection: EC-60320 C13
• Cold appliance connection cable: 1.8 m, CEE 7/4, IEC-60320 C13

Feed and drainage lines
• Feed water: M ¾”
• Permeat: M ⅜”
• Concentrate: John Guest 8 mm
• External tank: John Guest 8 mm

Dimensions and weight
• Dimensions (mm): 277W x 297D x 505H
• Weight: 17.7 kg

Order numbers
• BWT bestaqua 14 ROC Coffee: RS82M01A00
• BWT bestaqua Membrane Size 14: RS00Y61A00
• BWT bestaqua PREMIUM Size 14: FS24P99A00

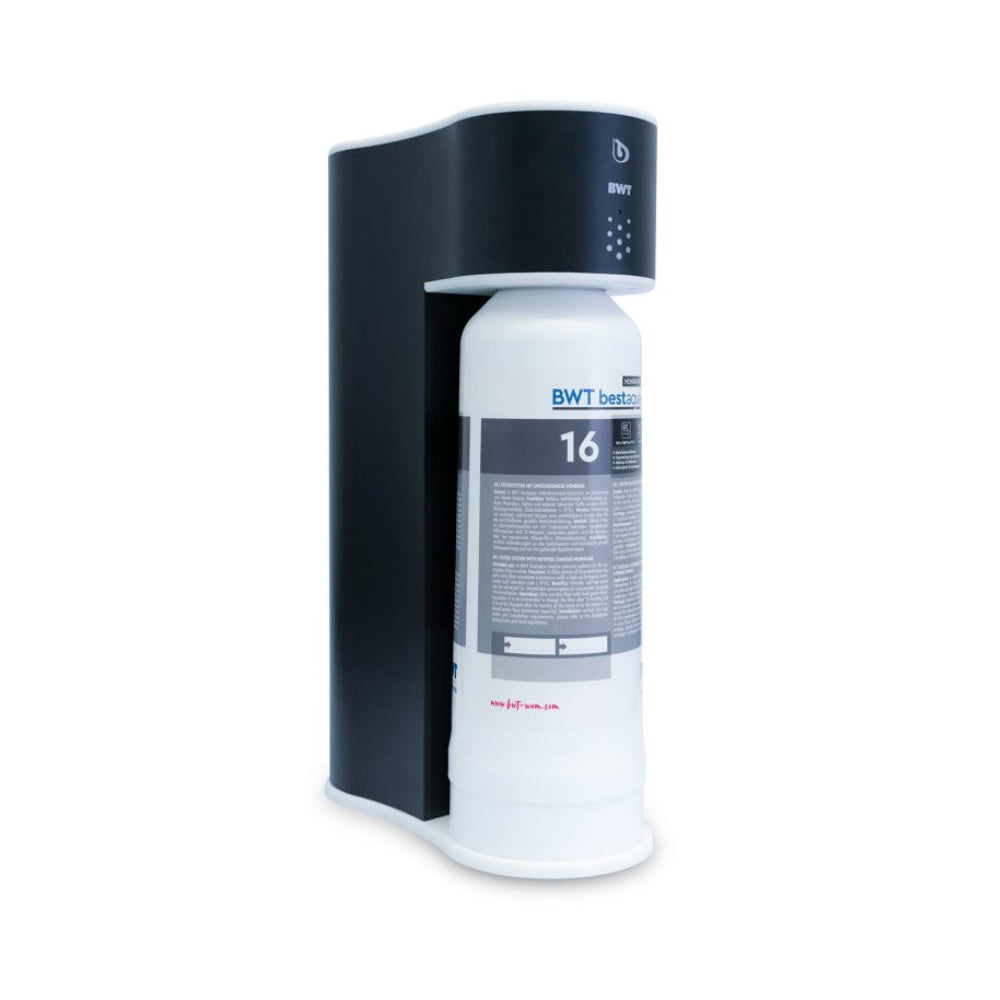

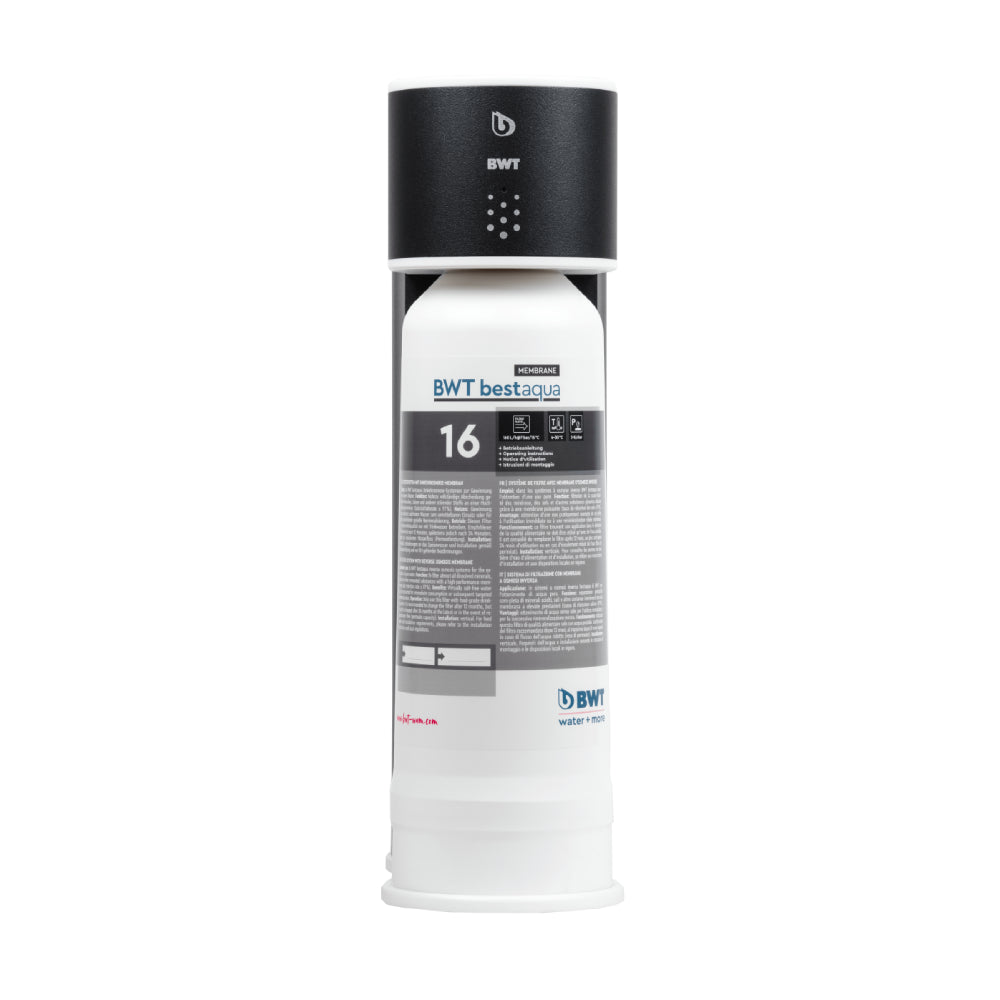

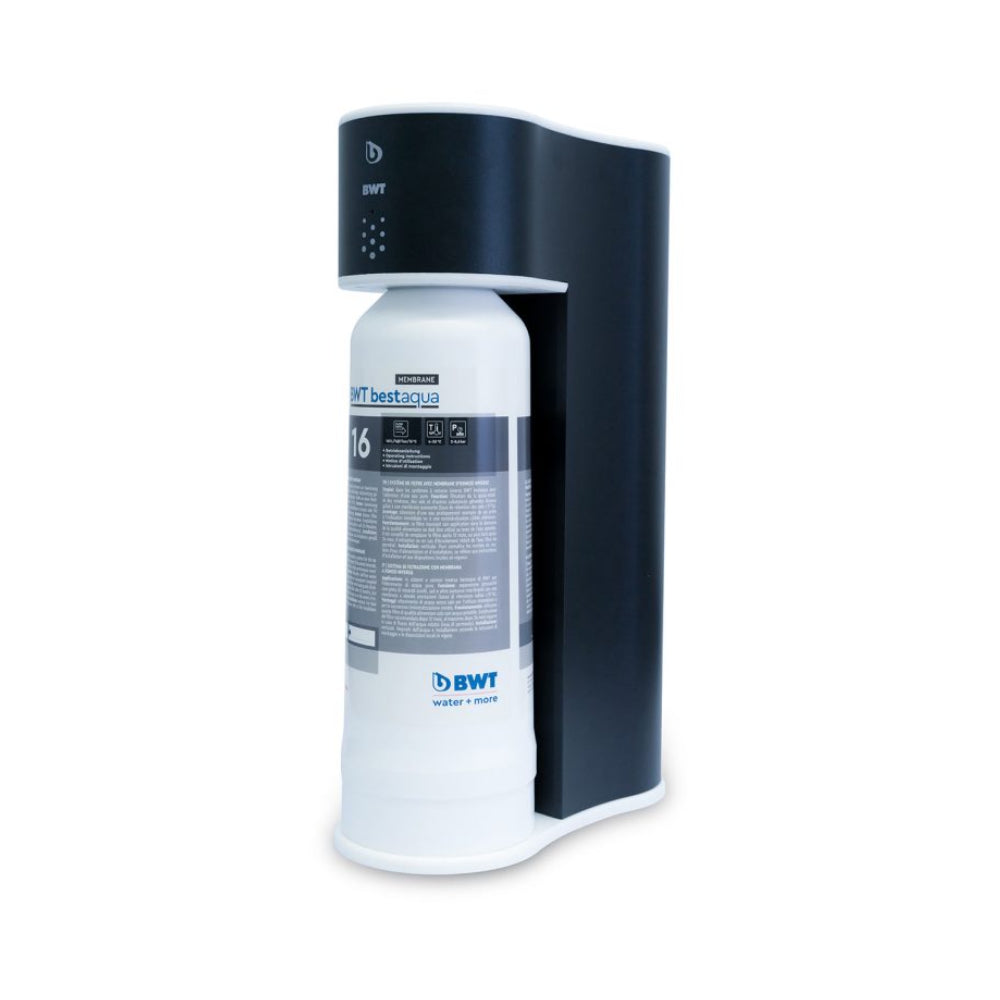

16 ROC
BWT bestaqua ROC 16
• Permeate capacity: 3 L/min = 180 L/t
• Salt retention rate: > 97%
• Permeate yield: approx. 50 %

Operating conditions
• Feed water flow rate, min.: 6 L/min = 360 L/t
• Concentrate flow rate: approx. 3.0 L/min = 180 L/h
• Feed water pressure: 0.15-0.4 MPa = 1.5-4 bar
• Feed water temperature: 5-30°C
• Ambient temperature: 5-40°C

Power
• Power supply: 220-240 V/50-60 Hz
• Protection rating: IP 54
• Device fuse: 1.25 A, standard
• Power consumption: 260 W, standby < 2 W
• Device connection: IEC-320
• IEC power cable: 1.8 m, CEE 7/4, IEC-60320 C13

Inlet and outlet lines
• Feed water: M ¾”
• Permeate: JOHN GUEST 8 MM
• Concentrate: JOHN GUEST 8 MM

Dimensions and weight
• Dimensions (W x D x H): 158 x 337 x 531 mm
• Weight: 15,95 kg

Order number
• BWT bestaqua ROC: 125255111
• BWT bestaqua MEMBRANE: 125258720

Specification:
• Innovative reverse osmosis technology
• Available in two product sizes with 120 l/h and 180 l/h permeate output
• Highly efficient and powerful – tailor-made for the catering industry
• Ideal for use in rinsing technology and for ovens/combi steamers
• Efficient production of demineralised water in large quantities
• Sustainable due to very low wastewater generation
• Resource-saving plug-and-play technology – unpack, connect and get started
• Easy monitoring and control via Bluetooth app
