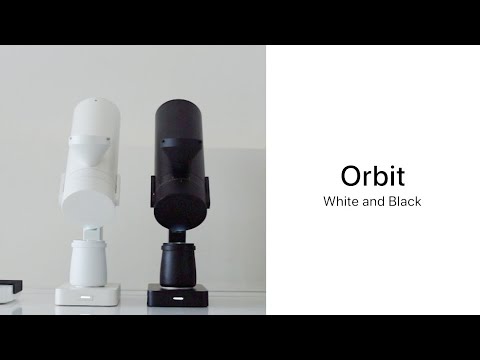

Acaia - Orbit Coffee Grinder

The minimal design of the Acaia Orbit is now available in Space Gray, Black and Beige White. The grinder maintains its unique functionality while offering a sleek, modern aesthetic. Acaia tailored our first-ever coffee grinder for single-dosing with automatic cleaning. These features aid in minimizing retention. The Orbit links with the Acaia Lunar for a seamless grind-by-weight experience. Built with Acaia's proprietary technology, it provides advanced RPM control and energy efficiency.

Experience Orbit

The Orbit is ready to take on any of your coffee brewing needs. It features 64 mm flat steel burrs and stepless grind adjustment. The single-dosing workflow includes a knocking chute and an automatic purge to reduce coffee retention to a minimum.

The companion app features customization for the three grinding presets. Take advantage of the RPM control and profiling all through your smartphone. The Orbit also includes a grind-by-weight function when paired with a Lunar espresso scale. This allows you to grind just the right amount every time. No need to pre-weigh your beans!

Multi-Purpose Hopper

The new Multi-Purpose Hopper functions as both a single-dose hopper and an adapter for larger batch dosing hoppers. Our bean hopper line is available up to a 2 kg capacity.

Stepless Adjustment Dial

A streamlined design allows for precise, effortless grind control from espresso to filter. Orbit White and Black feature a wide adjustment dial, while Orbit Space Gray includes a dial and detent ring to help mark the positions of different grind sizes.

Grind-By-Weight Precision Grinding

The Orbit's integration with the Lunar scale ensures exact dosing for every grind. It accommodates single and batch modes with an automated start-stop feature. Optimize your coffee preparation for consistency and efficiency.

64 MM Burrs

The burrs are designed for exceptional filter coffee and espresso brewing. This set ensures a wider range of brewing capabilities. Perfect for those who appreciate the nuances of an excellent brew.

Personalize your Orbit

Enhance your coffee-grinding experience with the Orbit companion app. We designed the Orbit app to personalize your workflow. Adjust the grinding speed from 600 to 1500 RPM, personalize button actions, and save unique profiles for grinding by weight or time. The newly introduced "Reverse-and-Adjust" feature allows an effortless transition between coarse and fine grinds. It is ideal for baristas who oscillate between filter coffee and espresso daily.

ENERGY EFFICIENT

Acaia believes that it is our social responsibility to be conscious of our environmental impact. Developed with our in-house technology, the Orbit is built to reduce energy consumption. And it still delivers an industrial high performance and smarter grinding.

BURR ALIGNMENT

After assembly, our team tests each grinder thoroughly. This is to ensure proper functionality, alignment, and grind quality. We use optical imaging software to evaluate ground coffee during testing. This is to check for an expected level of uniformity. We also carefully measure the distance between the burr lock point and the burr touch point. Acceptable distances are < 1.5 marks for Mazzer 33M burrs.

Orbit Tolerances

All Orbit parts are individually measured during the quality control process. This is to ensure they meet our precise standards and allow for the best burr alignment. For example, our grinders must meet or exceed the following:

• Burr mounting surfaces- 10 microns in flatness

• Motor drive shafts- 20 microns in concentricity

• Other critical parts- 20 micron tolerances
