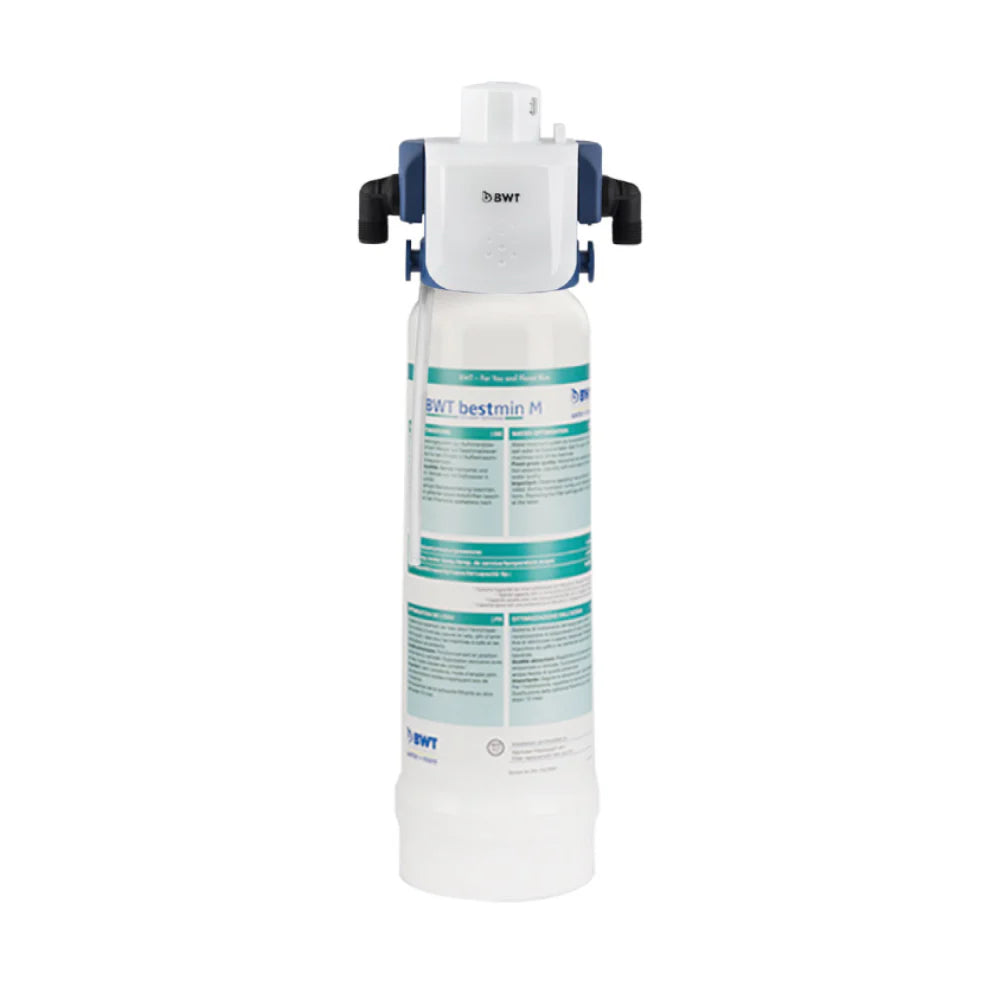

BWT Bestmin M Premium Water Filter Cartridge

BWT Bestmin M Premium Water Filter Cartridge:

·   Connection thread (in/out) : 3/8"

·   Typical capacity in litres : 10.000

·   Intake pressure min –max in bar : 2 – 8

·   Water temperature min – max in °C : 4 – 30

·   Ambient temperature min – max in °C: 4 – 40

·   Total height without bracket (A) in mm, approx. : 475

·   Total height with bracket (B) in mm, approx. : 500

·   Connection height (C) in mm : 425

·   Distance from floor (D) in mm : 65

·   Installed length (E) in mm : 125

·   Filter cartridges Ø (F) in mm : 130

·   Weight without filter head in g : 3.800

·   Weight with filter head in g : 4.0

·   Order no. Installation set : FS24M01A00

·   Order no. Filter cartridge : FS24M10A00

TECHNICAL ADVANTAGES

·    Multi stage filtration

·   Integrated active carbon filtration

·   Filtration of all treated water

·   Ease of handling when replacing the filter

·   High filter capacity

·   BWT remineralization for higher magnesium content

·   Simple installation via universal BWT besthead FLEX connection technology
